How to Edit a Published iGUIDE: Everything You Can Change

Updated

Overview

Most changes to a published iGUIDE are made in one place: the Edit View Page in the iGUIDE Portal. Use this article to find the change you want to make, where to make it, and the step-by-step guide for it.

Looking for account-wide settings instead? This article covers edits to one published iGUIDE. To change the defaults applied to every new iGUIDE, see How to Edit Your iGUIDE Default Settings.

In This Article

Opening the Edit View Page

Every edit in this article starts the same way:

  1. Log into the iGUIDE Portal
  2. Click My iGUIDEs at the top of the page

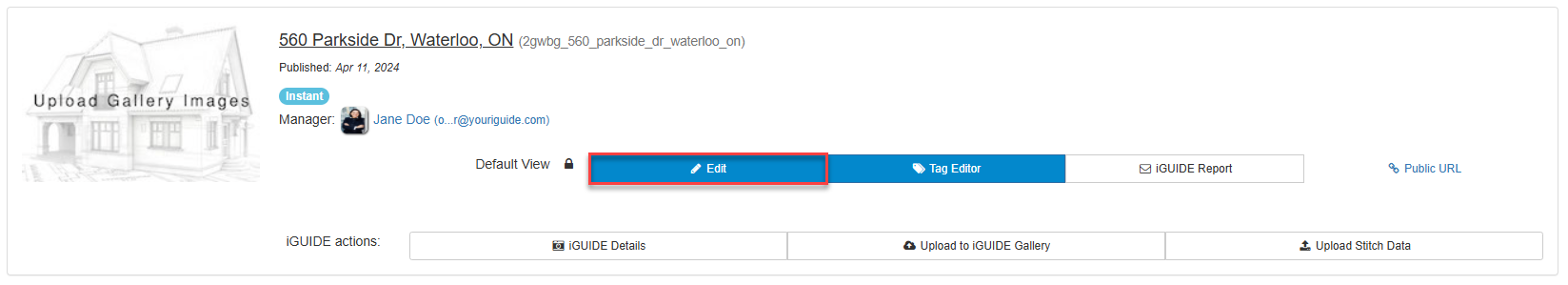

  3. Find the iGUIDE you want to change and click the blue Edit button

The top of the page holds the iGUIDE's settings (title, start options, colours, options). Scroll down to reach the 3D Tour Editor, where you change labels, floors and rooms.

Important: when you're done, scroll to the bottom and click the blue Save button. Changes aren't kept until you save.

Changes to the Tour, Viewer and PDF

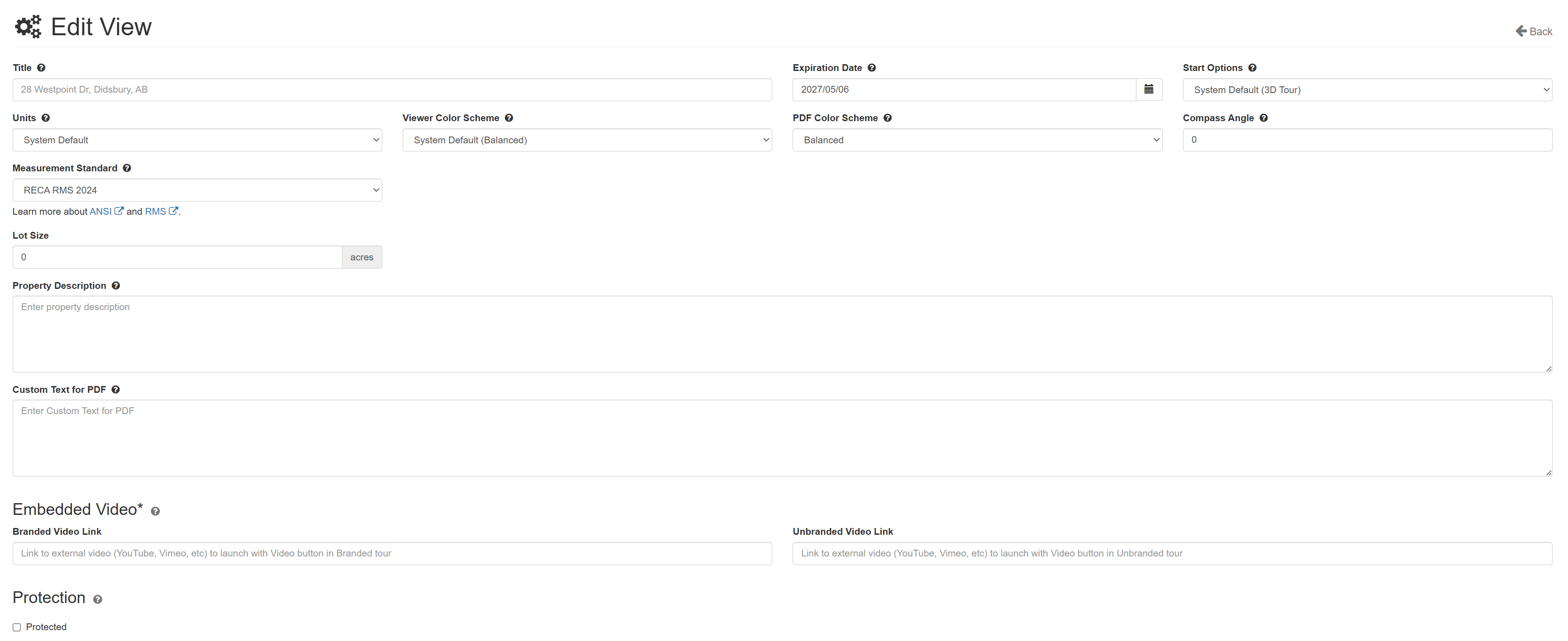

These settings are at the top of the Edit View Page. Open the page, make your change, then click Save.

Title

Type a new name in the Title field. The title appears at the top of the iGUIDE. If you leave it empty, the property address is used.

Expiration Date

Pick a date under Expiration Date. After that date, the public link is locked and the iGUIDE can't be viewed.

Start Options

Choose how the iGUIDE opens: 3D Tour, 3D Tour: Autoplay, Gallery, Gallery - Slideshow, Video, Video - Autoplay, or a video that plays first and then opens the 3D Tour. Autoplay follows the order the panos were submitted in Stitch. Video options support YouTube and Vimeo.

Units

Set the default measurement unit (metric or imperial).

Viewer Color Scheme

Choose the colours of the floor plans in the 3D Tour.

PDF Color Scheme

Choose the colours of the PDF floor plans.

Compass Angle

Adjust this if the compass points the wrong way or is missing.

Measurement Standard

Choose the standard from the drop-down: ANSI Z765 2021 or RECA RMS 2024. Learn more about ANSI and RMS.

Lot Size

This field appears only on iGUIDEs with the Site Plan add-on. Type the lot size when third-party data is missing or wrong.

Property Description

Add a description of the property. It appears on the Details tab in the Viewer.

Custom Text for PDF

Add text that appears at the bottom of the Property Details section of the PDF floor plans.

Embedded Video

Paste a YouTube or Vimeo URL to add a video to the iGUIDE.

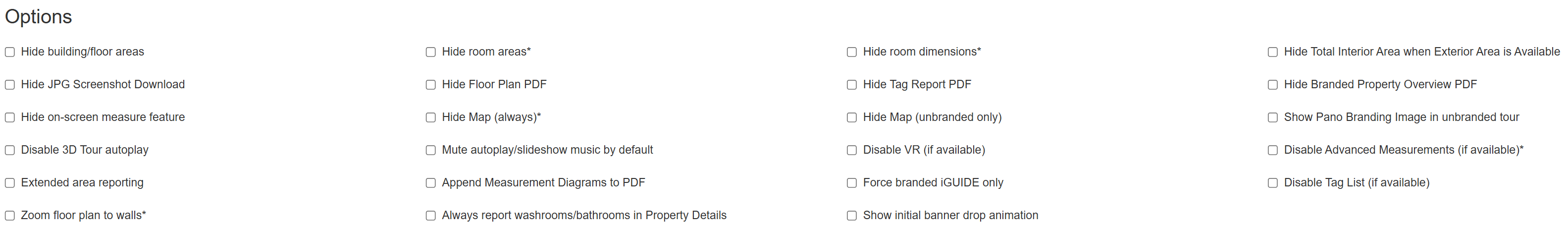

Options Breakdown

Tick a box under Options to turn a setting on:

  • Hide building/floor areas removes building and floor totals
  • Hide room areas*
  • Hide room dimensions*
  • Hide Total Interior Area when Exterior Area is Available
  • Hide JPG Screenshot Download
  • Hide Floor Plan PDF removes the PDF floor plan download
  • Hide Tag Report PDF
  • Hide Branded Property Overview PDF
  • Hide on-screen measure feature hides the ruler tool
  • Hide Map (always)* removes the Nearby map tab
  • Hide Map (unbranded only) removes the Nearby map tab from the unbranded iGUIDE
  • Show Pano Branding Image in unbranded tour
  • Disable 3D Tour autoplay
  • Mute autoplay/slideshow music by default
  • Disable VR (if available)
  • Disable Advanced Measurements (if available)*
  • Extended area reporting
  • Append Measurement Diagrams to PDF adds a separate PDF set with exterior wall measurements
  • Force branded iGUIDE only disables the unbranded link in the iGUIDE Report
  • Disable Tag List (if available)
  • Zoom floor plan to walls* fits the floor plan to the viewer window
  • Always report washrooms/bathrooms in Property Details shows all washroom dimensions on the Details tab
  • Show initial banner drop animation when the iGUIDE first loads

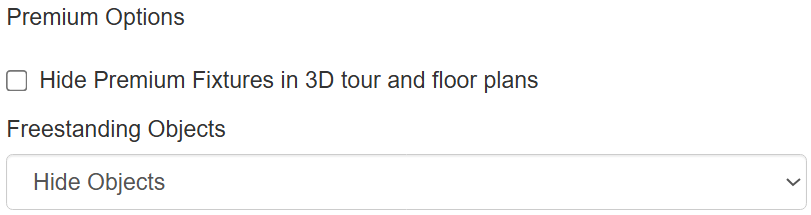

Premium Options

These options appear only on iGUIDEs ordered as Premium instead of Standard:

  • Hide Premium Fixtures in 3D tour and floor plans
  • Freestanding Objects: choose from the drop-down:
    • Industry Default
    • Show Objects
    • Hide Objects

Control who can view the iGUIDE

Use Protection to add or remove people who can view the iGUIDE. Managers and editors always keep access. See Customizing Your iGUIDE's Protection Settings for details.

Changes to Floor Plans, Rooms and Labels

These changes are made in the 3D Tour Editor, further down the Edit View Page. Open the page as described in Opening the Edit View Page, scroll down to the 3D Tour Editor, then follow the steps below.

Hide or show a pano

  1. In the Preview, double-click the pano (blue circle) you want to hide. It turns red, and the pano shows a small banner across the centre to mark it as disabled.
  2. To turn a pano back on, double-click its red circle.
  3. Click the blue Save button at the bottom of the page.

Set the first pano viewers see

  1. In the Preview, select the pano (green circle) you want the tour to start on.
  2. Click the black Actions button above the tour and select Set Initial Pano.
  3. Click the blue Save button. The 3D Tour jumps back to the new starting pano.

Rename a room or change a label

  1. Click the pencil icon beside the label you want to change.
  2. In the pop-up, type the new name in Label:.
  3. Click the blue Ok button, then the blue Save button at the bottom of the page.

Add a new label

  1. Click Actions at the top left of the 3D Tour Editor and select Add New Label. A new label appears on the floor plan.
  2. Drag the arrow symbol beside the new label to move it where you want it.
  3. Click the pencil icon beside the label, type its name in Label:, and click Ok.
  4. Click the blue Save button at the bottom of the page.

Hide or show a floor

  1. Select the floor with the floor selector at the bottom of the floor plan.
  2. Click the orange pencil icon beside the floor name.
  3. Tick Show in iGUIDE to show the floor, or untick it to hide it from the 3D Tour and PDF floor plans. A hidden floor's name shows in red.
  4. Click the blue Ok button, then the blue Save button at the bottom of the page.

To change the order floors appear in, submit an update request to the drafting team. See Changes You Can't Make Yourself.

Mark a floor as below grade (basement)

  1. Select the floor with the floor selector at the bottom of the floor plan.
  2. Click the orange pencil icon beside the floor name.
  3. Tick Below Grade to mark the floor as below grade, or leave it unticked for above grade.
  4. Click the blue Ok button, then the blue Save button at the bottom of the page.

Change exterior wall thickness

  1. Select the floor with the floor selector at the bottom of the floor plan.
  2. Click the orange pencil icon beside the floor name.
  3. Enter a value under Perimeter Wall Thickness.
  4. Click the blue Ok button. Repeat for each floor you want to change, then click the blue Save button at the bottom of the page.

Choose which rooms show measurements

  1. Click the pencil icon beside the room's label.
  2. In the pop-up, tick the boxes to show room dimensions and room area, or untick them to hide them for that room.
  3. Click the blue Ok button, then the blue Save button at the bottom of the page.

Include or exclude a room from the total area

  1. Click the pencil icon beside the room's label.
  2. Under Room Flag, choose Included, Excluded or Exterior.
  3. Click the blue Ok button, then the blue Save button at the bottom of the page.

Changes You Can't Make Yourself

Some changes aren't available on the Edit View Page:

  • The order of floors. Floors appear in the order the project was ordered in Stitch or the Planix app. To change the floor order, submit an update request to the drafting team.
  • The order of rooms on the Details tab. Rooms are sorted alphabetically by floor, with labels that start with numbers at the top.
  • [Support team to add: other changes that need a redraft or a ticket, e.g. moved walls or missing rooms.]

If the change you need isn't listed in this article, open a ticket and our support team will help.

Frequently Asked Questions

Q: Why didn't my edits save?
A: Click the blue Save button at the bottom of the Edit View Page after making changes. Clicking Ok in a pop-up confirms that one change but doesn't save the page.

Q: Will my changes update the PDF floor plans too?
A: Most options apply to the Viewer, PDF floor plans and Report. Options that hide a specific download, such as Hide Floor Plan PDF or Hide Tag Report PDF, affect only that download.
